Match a diaphragm sprayer sample to the quotation using the model identifier, relevant version and a record of the actual machine markings. Keep model and serial information separate, and ask the supplier to resolve any mismatch with the manual or offer. A catalogue image can identify a candidate; it cannot replace readable sample identification or establish technical ratings.

A supplier gallery can show several red diaphragm sprayers with similar frames. Before a sample is accepted as the reference for an order, the purchasing team needs to know which machine it represents. This article focuses on the identity record and document match. It does not assess spraying performance, give operating instructions or assume that appearance establishes the machine’s specifications.

1. Record the expected sample identity

Start with the quotation model, requested version and the supplier’s sample reference. Keep the enquiry line or quotation revision with that information. If the supplier offers a different version for the sample, ask it to identify the difference before treating that sample as representative of the proposed bulk product.

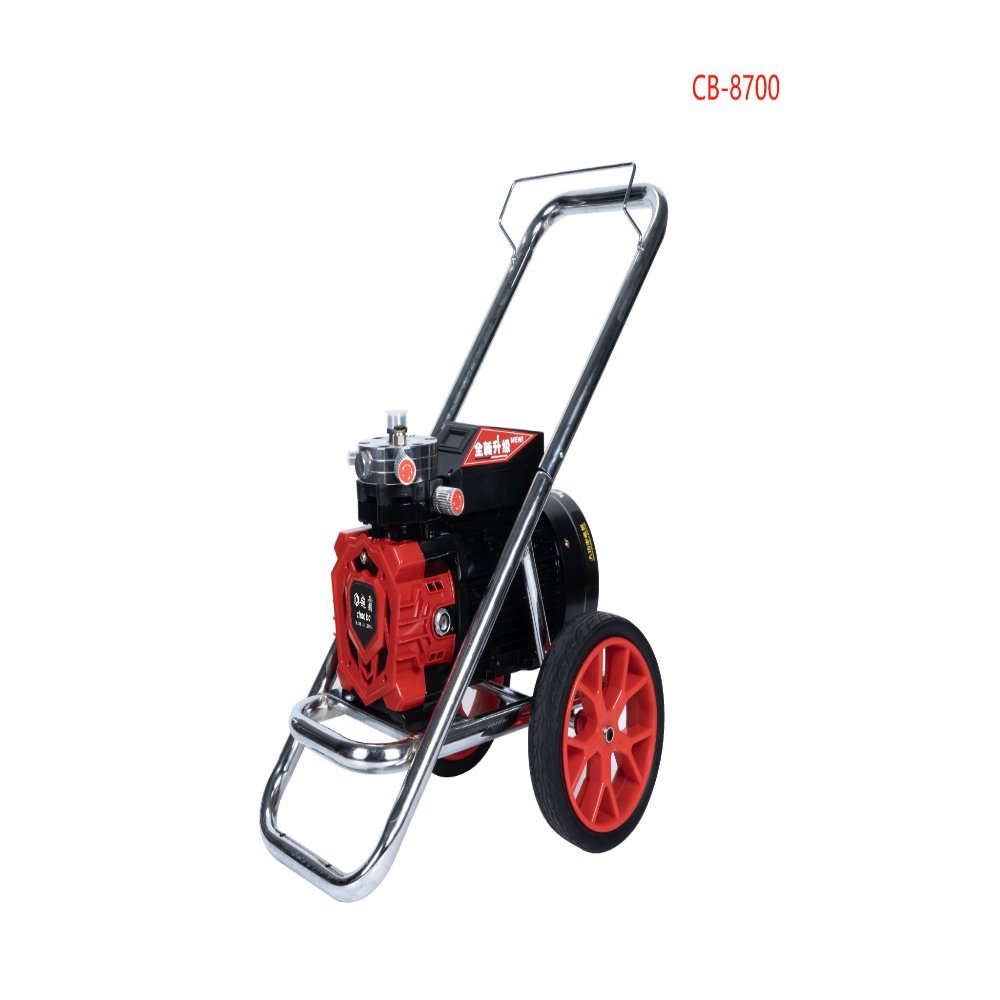

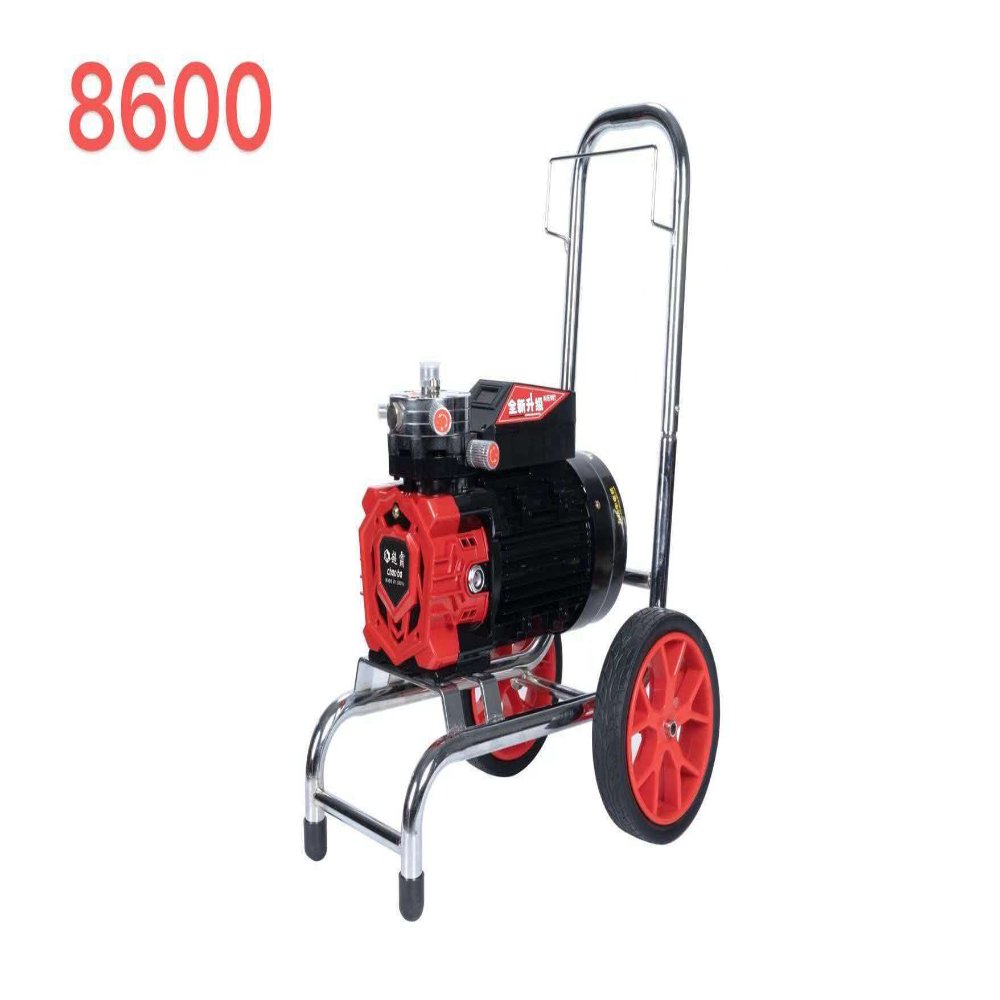

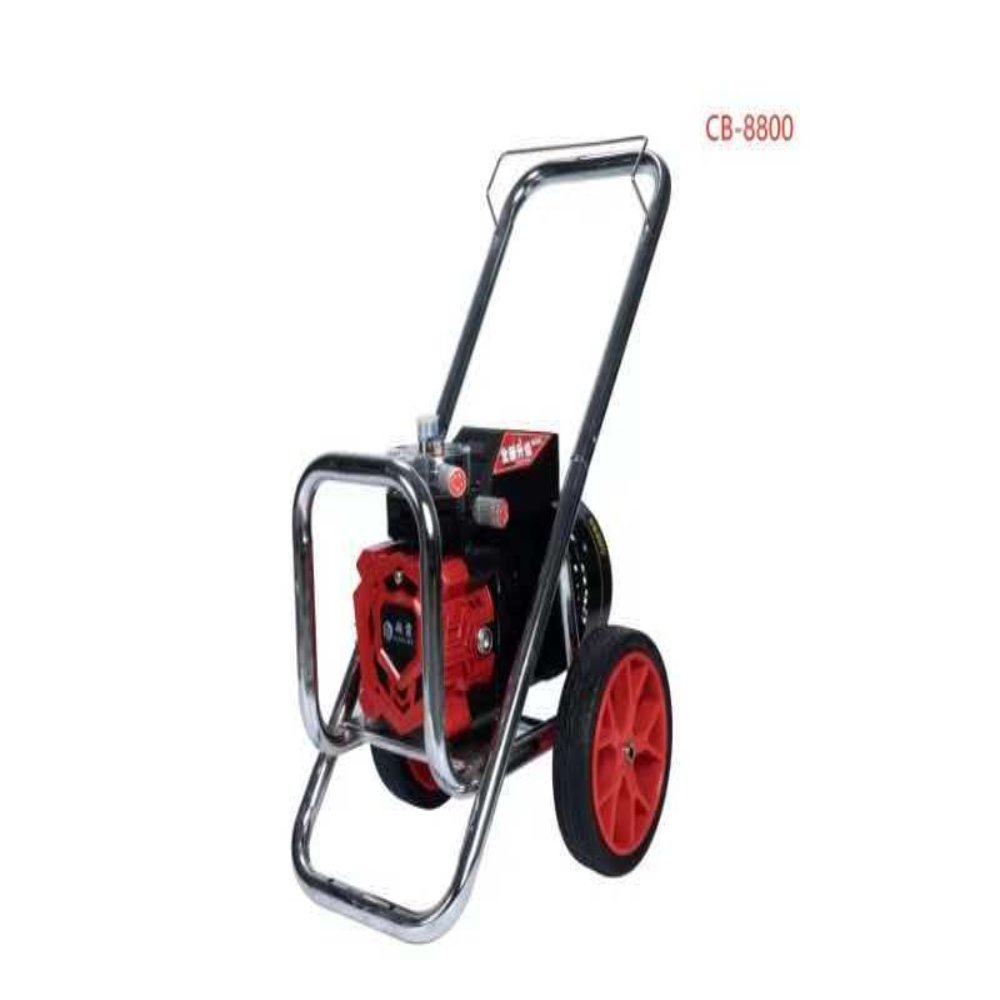

Chaoba’s diaphragm sprayer gallery includes several labelled machine references. They help show that a family page can contain more than one candidate. Use the exact proposed reference rather than describing the selection only as the red machine. Differences in a frame or handle can be an identification clue, but they do not establish internal specifications.

Official catalogue reference: diaphragm sprayer model family.

2. Capture the actual sample markings

Request readable photographs of the identification markings on the supplied sample, together with a complete machine view that links those markings to the item. Record the text as shown and retain the photographs. A partially legible catalogue label should not be transcribed into a confirmed sample identity or expanded into a guessed model designation.

Separate the model field from any serial, batch or other unit-specific identifier. Ask the supplier to explain the purpose of an unfamiliar marking rather than assigning it a meaning. The model may describe a product version while a serial identifies one unit; keeping their roles clear makes the record useful when another sample arrives.

• Record the expected quotation model and version.
• Keep readable sample markings with a complete machine view.
• Separate model identity from serial or batch identifiers.
• Resolve document differences before accepting the identity reference.

3. Match the documents to that identity

Ask which manual, specification sheet and supplied documentation apply to the identified sample version. Keep their model references and revisions with the sample record. A document covering a wider family may still require clarification about which entries apply to the selected machine. Do not assume every option shown in a general manual is fitted to the sample.

Where labels or documents state technical information, retain it as a source record for the responsible review. Do not derive a rating from colour, frame size or a similarly named model. Any required electrical, operating or application information should be confirmed for the exact machine by the supplier and reviewed by the appropriate responsible personnel.

4. Resolve mismatches before accepting the reference

Use a simple comparison table for the quotation, physical sample and applicable documents. Mark an unexplained difference as open rather than quietly replacing the expected field with what happened to arrive. Ask the supplier whether the difference represents a naming convention, a revised version, an alternative sample or an error requiring correction.

Keep the response attached to the original discrepancy. If a replacement sample or revised document is supplied, retain the earlier reference and show which record supersedes it. This preserves the reason for the change and prevents a later reviewer from treating two different machines or versions as one continuously approved sample.

5. Retain the identity package for later orders

After the identification questions are closed, retain the complete sample view, readable markings, quotation reference and applicable document revisions together. State which machine has been accepted as the identity reference and which questions remain outside that decision. Identity acceptance alone does not establish coating compatibility, output quality, durability or performance.

Use the same identifiers in later sample, order and receiving discussions. If the supplier proposes a different model or revision for replenishment, request an explicit comparison instead of carrying the earlier identity approval across automatically. A traceable record gives the buyer a consistent reference while leaving technical evaluation and current commercial terms to their own confirmation steps.

For a product-specific enquiry, diaphragm sprayer model family is the catalogue starting point. Read the supplier blog and contact the supplier with the references and open questions described above.
