Order sprayer nozzles and accessories by identified part references and confirmed mating components, rather than colour or a similar-looking thread. Supply the existing machine and gun references, request the accessory drawing or specification, and ask the supplier to confirm the exact proposed combination. A catalogue photograph cannot establish thread identity, pressure suitability, material compatibility or approved replacement status.

A nozzle accessory gallery may show several small components next to one another without explaining which pieces form a supplied assembly. For an importer or purchasing team, the first task is identification. This guide helps organise the questions and records needed for that selection. It is not an installation procedure and does not establish that an unverified component can be used with a particular sprayer.

1. Start with the equipment identity

Record the exact equipment and spray gun references associated with the enquiry. Include the supplier or manufacturer identification and the available model or revision information. A broad description such as airless equipment is not enough to identify the intended mating part. Ask the responsible supplier which additional information it needs before proposing an accessory.

Use photographs to support identification, while keeping them distinct from confirmed specifications. A clear image can show the existing component arrangement or a visible part marking, but a photograph alone may not resolve the interface. Do not substitute an approximate visual match for the identifying information the supplier requires for the proposed combination.

Official catalogue reference: sprayer nozzle and accessory catalogue.

2. Name each component in the requested scope

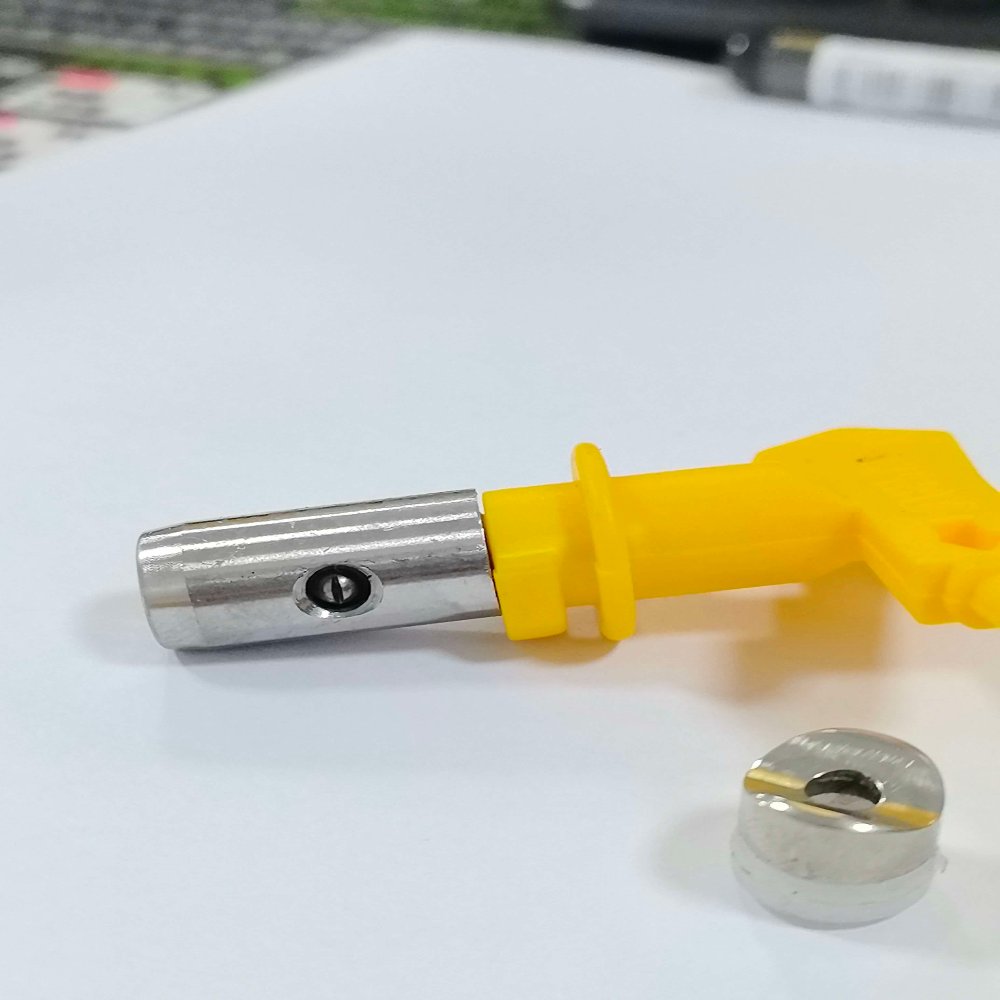

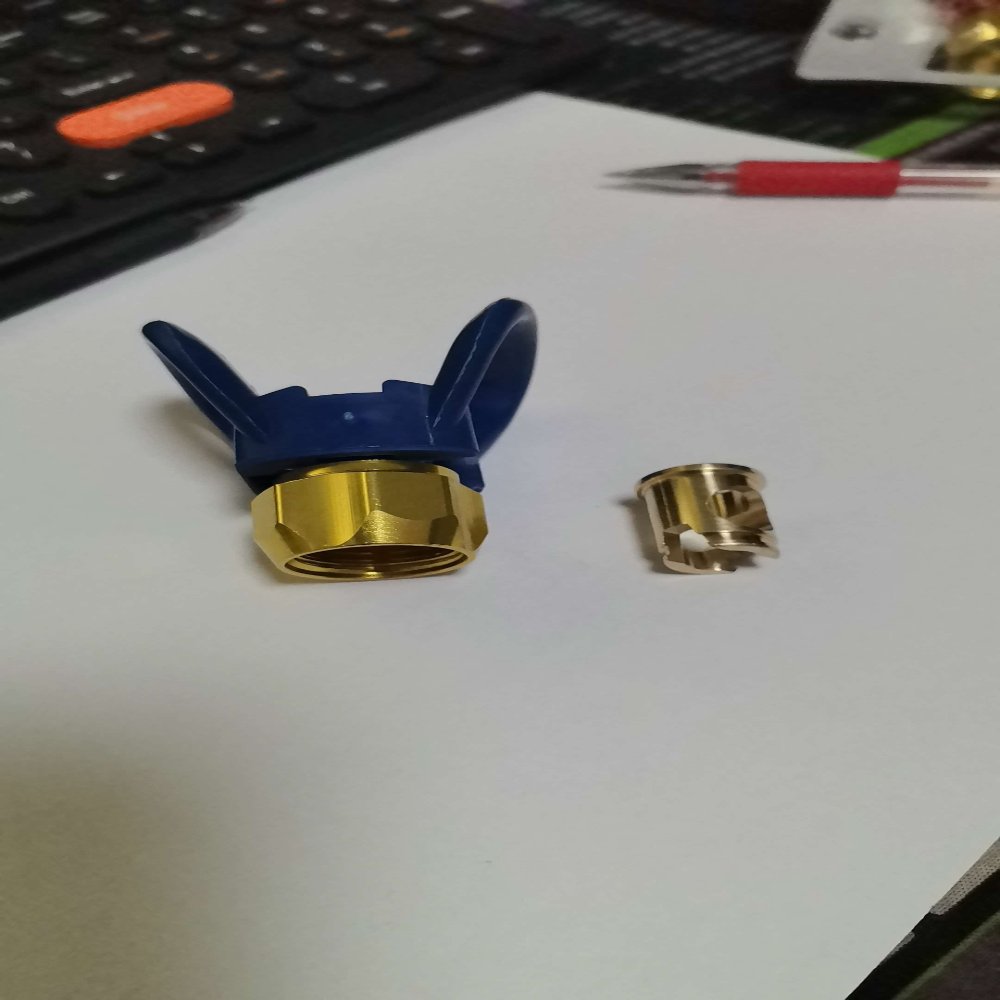

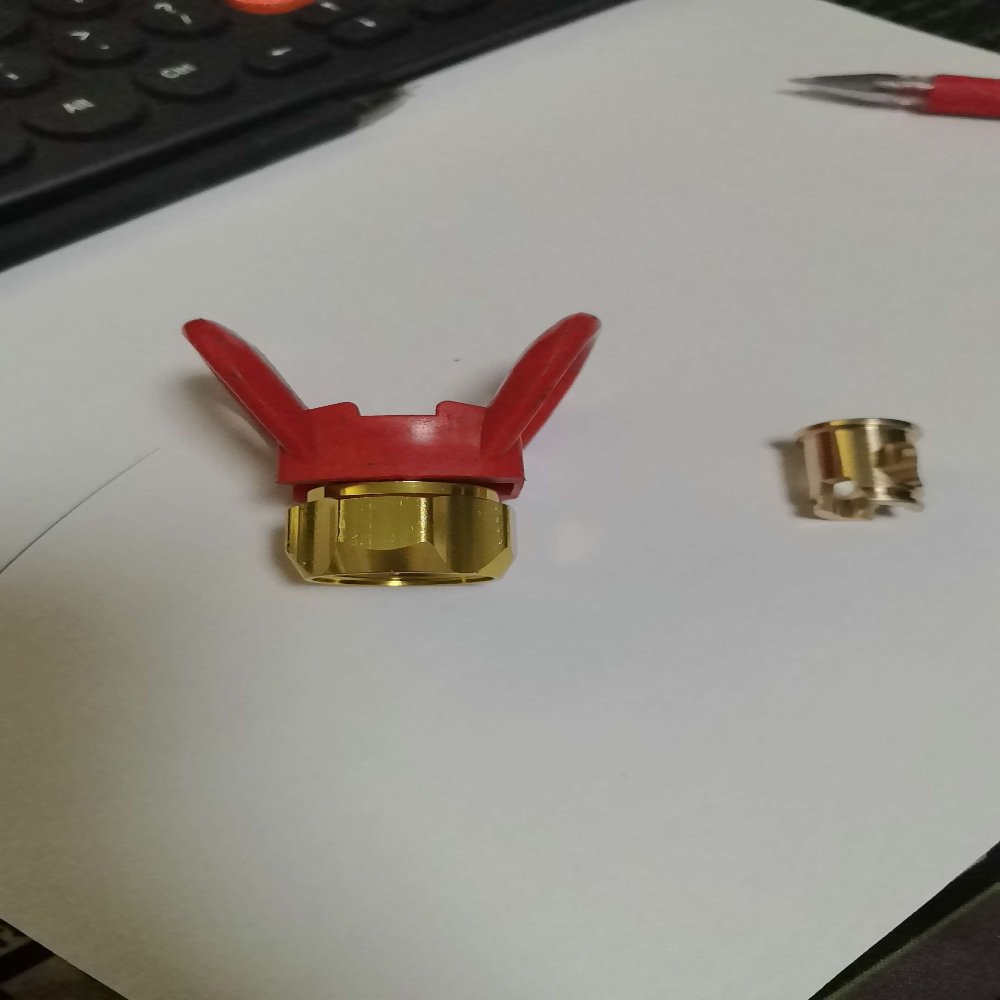

Chaoba’s accessory gallery shows nozzle-related components, including coloured guards and separate metal pieces. Ask the supplier to identify each selected component and state whether the offer concerns an individual part or a defined assembly. Do not assume that everything placed beside an item in the photograph is included in its quoted unit.

Give each requested item a buyer line code and retain the supplier’s corresponding part reference. If the same component is offered in several versions, keep the version identifiers separate. Colour can help a warehouse distinguish an item visually, but it does not establish the underlying interface, construction or technical suitability of that item.

• Identify the existing equipment and gun references.
• Give every requested component its own part line.
• Request the applicable interface specification and scope.
• Keep an alternative’s compatibility response with its identifier.

3. Request the mating interface specification

Ask for the drawing, specification or documented reference needed to identify the interface between the selected accessory and the existing component. The response should identify the parts it covers. If the supplier uses a thread or connection description, request its complete applicable designation rather than assuming that a familiar-looking fitting shares the same specification.

Keep any sealing or retaining components within the supplier’s confirmed assembly description. Do not select an unspecified insert because it resembles a piece in the gallery. The purchasing record should identify what is proposed and which compatibility questions remain open, leaving installation and use to the relevant instructions and responsible personnel.

4. Separate identification from performance claims

A correct part identifier is necessary for a traceable order, but it does not by itself establish every operating requirement. Ask the supplier to provide the product-specific information relevant to the intended equipment and application. Keep any required technical limits, material suitability or replacement approval tied to the exact part and combination being proposed.

Do not repeat general catalogue statements about atomisation, service life or ease of replacement as independently verified results. Likewise, a visible colour or metallic appearance does not establish a material grade. Where information is missing, record the gap and obtain the appropriate confirmation instead of converting a broad family description into an order-specific specification.

5. Keep alternatives and receiving references clear

If the supplier proposes a substitute, record its part identifier on a separate alternative line and ask which original request it addresses. Keep the compatibility response with that alternative. A replacement name should not overwrite the original reference until the responsible buyer has reviewed and accepted the proposed change for the stated purpose.

For the selected offer, ask how individual parts or assemblies will be identified on packaging and documents. Use the same part references and quantity basis on the order and receiving list. This lets staff reconcile the delivered merchandise without deciding technical compatibility by appearance, while any unresolved specification question remains visible before an order is released.

For a product-specific enquiry, sprayer nozzle and accessory catalogue is the catalogue starting point. Read the supplier blog and contact the supplier with the references and open questions described above.
